Intrinsic Models

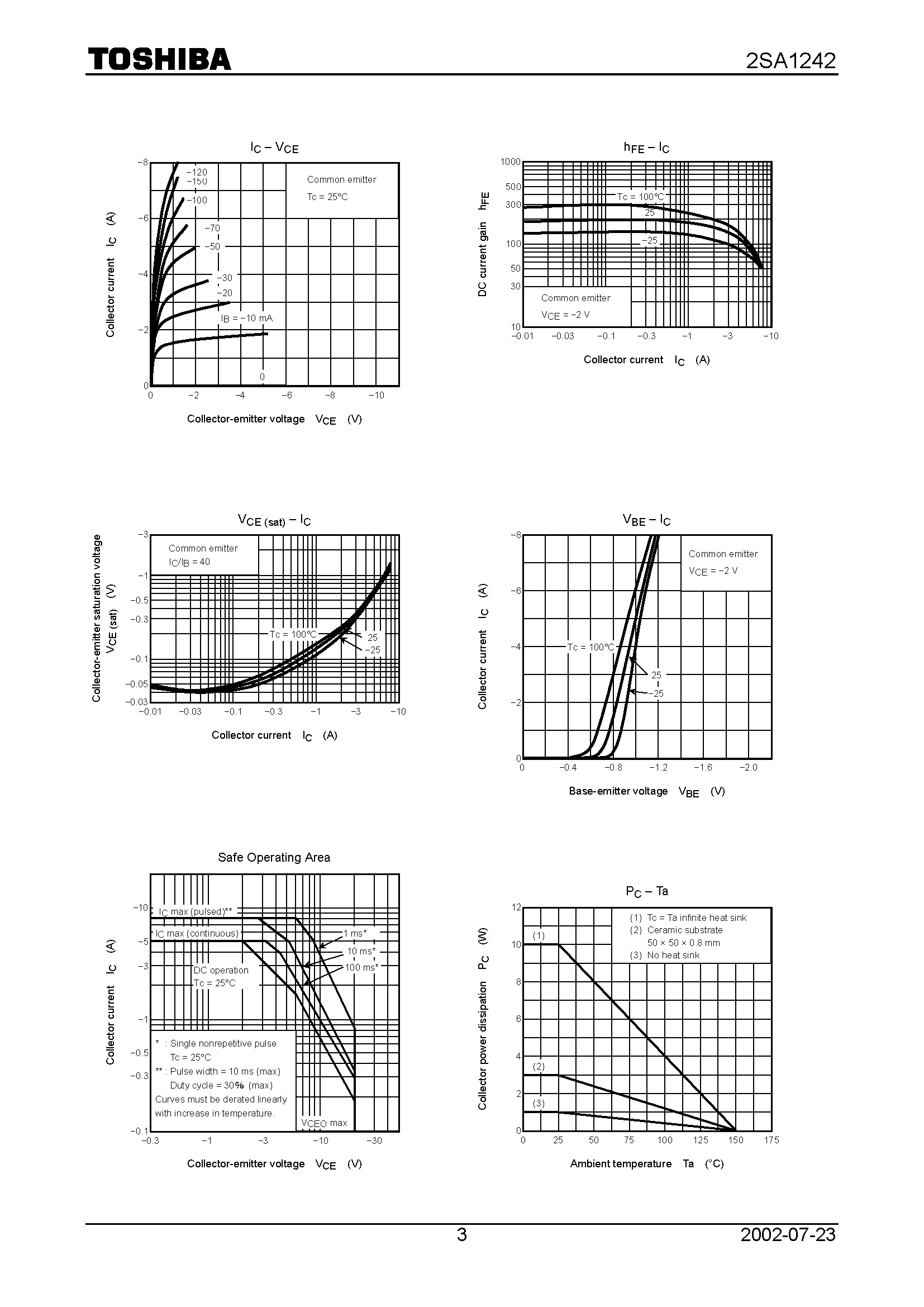

The process of developing a model starts with receiving a device datasheet from the manufacturer(click on pictures at left for larger image)
The graphs on the datasheet are scanned, and device performance values are digitized from the scanned datasheets.

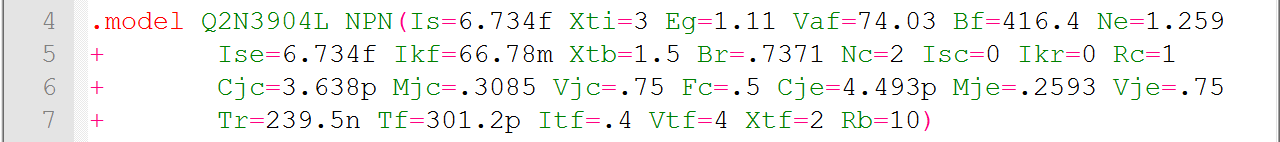

MODPEX extracts the model parameters through the use of an optimizer engine, which varies the model parameters to minimize the error of the model performance to the digitized data sheet performance values.
When the parameters are fully extracted, MODPEX tests the device and generates a datasheet of the model performance vs. the original datasheet values.
Standard turn-around time for a device model generated with MODPEX is 2-4 days from the receipt of the device datasheet and purchase order/credit card info/wire transfer.
